How to Construct a Survivorship bias-free Database in Norgate using Python

Analyzing historical stock market data is essential for backtesting trading strategies, identifying tradable edges, and conducting in-depth financial research. However, gathering comprehensive datasets, especially those that include delisted stocks (i.e., stocks that no longer trade due to acquisitions, mergers, buyouts, or bankruptcy) can be challenging. This is where Norgate Data comes in—offering a powerful solution that provides not only data for active stocks but also for delisted ones. It also includes vital metadata like index membership and sector classifications, allowing a quant researcher to build a comprehensive database on which to run their backtests.

In this guide, we’ll walk you through how to use Python with the Norgate Data API to download U.S. stock market data—both listed and delisted. We’ll start with some well-known tickers to get familiar with how Norgate Data integrates with Python, and then expand to downloading the entire U.S. stock market data.

By the end of this tutorial, you will be able to:

1. Set up a connection to Norgate Data and retrieve stock data using Python.
2. Download historical price data for individual tickers.
3. Enrich the data with company names and sector information.
4. Check index membership to see whether a stock was part of a major index like the S&P 500, Russell 3000 or other.
5. Retrieve both active and delisted stock symbols for broader historical analysis.
6. Download complete market data for both listed and delisted stocks.

To make the process accessible to everyone, we’ve provided a Jupyter Notebook that you can run locally. This step-by-step approach ensures that even beginners can follow along and build a complete market-wide dataset.

Setting Up Norgate Data

Before we dive into the code, there are a few steps to follow to ensure you can access the data using Python:

1. Create a Norgate Data account – Norgate offers a 21-day free trial with access to two years’ worth of historical data. You can sign up here.
2. Install Norgate Data Updater – Download and install the Norgate Data Updater from here. This software connects to the Norgate servers and allows you to download financial data. You must have this application running in the background to use the Python API.

Ensure Database is Downloaded and Active

Once Norgate Data Updater is installed, you must ensure that the necessary databases are downloaded and active before proceeding with the Python integration.

After logging into the Norgate Data Updater, navigate to the Database section and ensure that the following databases are marked as Active:

• US Equities
• US Equities Delisted

If any databases are missing, select the checkbox next to them and click the Download button at the bottom of the window. Make sure these databases are fully active before proceeding with the Python integration.

Disclaimer

This tutorial is for educational purposes only. We are not affiliated with or sponsored by Norgate Data.

Let’s Dive In!

With the Norgate Data Updater set up and running, you’re now ready to start retrieving U.S. stock market data using Python. We will begin by downloading data for specific tickers (like AAPL, TSLA, and GOOG) to understand how the Norgate Data API works. Once that’s clear, we’ll move on to downloading the entire U.S. stock market data, including both active and delisted stocks.

Here are the steps we will cover in this guide:

Step 1: Import Required Libraries and Set Up Logging

We will start by importing the necessary Python libraries, including norgatedata, and set up logging to track the progress of data downloads and transformations.

Step 2: Download Historical Stock Data for Known Tickers (AAPL, TSLA, GOOG)

We will download daily stock market data for a few well-known companies to get comfortable with using the Norgate Data API.

Step 3: Add Company Names to the Downloaded Data

We’ll enrich the downloaded data by adding the full company names using Norgate’s company name information.

Step 4: Add Sector Information

We will add sector classifications (e.g., Technology, Consumer Discretionary) to the data to make the dataset more insightful.

Step 5: Check Index Constituency (S&P 500, Russell 3000)

We’ll check if the stocks were part of major indices such as the S&P 500 or the Russell 3000 at any given point in time and add that information to our dataset.

Step 6: Download Active and Delisted Market Symbols

We will retrieve the list of symbols for both active and delisted U.S. equities to expand our dataset to the entire market.

Step 7: Filter for Stocks Only

After downloading all symbols, we’ll filter out non-equity instruments (like ETFs and funds) to focus on stocks only.

Step 8: Download Complete Stock Data (Listed and Delisted)

Finally, we will download the complete dataset, which includes both active and delisted stocks, for the entire U.S. stock market.

Step 9: Add Company Names to the Entire Market Data

We will enrich the entire market dataset (both active and delisted stocks) by adding the full company names using Norgate’s company name information.

Step 10: Add Sector Information to the Entire Market Data

We will add sector classifications (e.g., Technology, Consumer Discretionary) to the entire market dataset to categorize stocks into industry groups.

Step 11: Check Index Constituency for the Entire Market (S&P 500, Russell 3000)

We will check if each stock in the entire market (both active and delisted) was part of major indices such as the S&P 500 or the Russell 3000 at any given point in time, and add that information to the dataset.

Step 12: Merge Active and Delisted Stocks into One Dataset

In this step, we merge the data for all active and delisted stocks into a single dataset. This ensures that our database contains a complete record of all stocks, whether they are still trading or have been delisted. The merged dataset is then sorted by date to maintain chronological order, and finally, it is saved as a .parquet file for efficient storage and retrieval.

Steps Overview and Explanation

Let’s go through each step in more detail, explaining the code that will be used and showing how to handle the data.

Step 1: Import Required Libraries and Set Up Logging

The first step is to import the necessary libraries. We’ll need norgatedata to interface with Norgate Data, pandas for handling and manipulating the data, and logging to monitor the process.

import norgatedata
import logging
import pandas as pd

logging.basicConfig(level=logging.INFO, format='%(asctime)s - %(levelname)s - %(message)s')

Also, you have to install norgatedata and pandas if they are not already installed by using the following commands:

pip install norgatedata
pip install pandas

Explanation: This imports the necessary libraries. Logging will help track the progress and debug any issues during data downloading and processing.

Step 2: Download Historical Stock Data for Known Tickers (AAPL, TSLA, GOOG)

Now, let’s download the daily stock price data for Apple (AAPL), Tesla (TSLA), and Google (GOOG) to understand how the Norgate Data API works.

def download_stock_data(symbol, start_date, end_date):
    logging.info(f"Downloading data for {symbol} from {start_date} to {end_date}...")
    priceadjust = norgatedata.StockPriceAdjustmentType.TOTALRETURN
    padding_setting = norgatedata.PaddingType.NONE
    timeseriesformat = 'pandas-dataframe'

    pricedata = norgatedata.price_timeseries(
        symbol,
        stock_price_adjustment_setting=priceadjust,
        padding_setting=padding_setting,
        start_date=start_date,
        end_date=end_date,
        timeseriesformat=timeseriesformat
    )

    return pricedata

start_date = pd.Timestamp('2023-01-01')
end_date = pd.Timestamp('2024-01-01')

aapl_data = download_stock_data('AAPL', start_date, end_date)
tsla_data = download_stock_data('TSLA', start_date, end_date)
goog_data = download_stock_data('GOOG', start_date, end_date)

aapl_data.head()

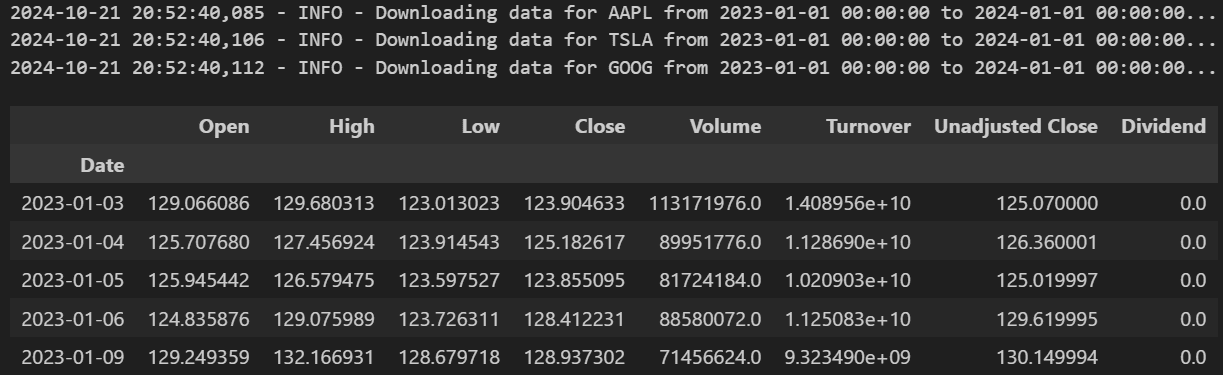

Explanation: This function downloads the historical price data for the given symbol (AAPL, TSLA, GOOG) over the specified date range. We use total return adjusted price data, which accounts for dividends and stock splits.

Step 3: Add Company Names to the Downloaded Data

Next, we’ll add the full company name for each stock using Norgate’s security_name function.

def add_security_name(symbol, data):
    security_name = norgatedata.security_name(symbol)
    data['Security_Name'] = security_name
    logging.info(f"Added security name for {symbol}: {security_name}")
    return data

aapl_data = add_security_name('AAPL', aapl_data)
tsla_data = add_security_name('TSLA', tsla_data)
goog_data = add_security_name('GOOG', goog_data)

aapl_data.head()

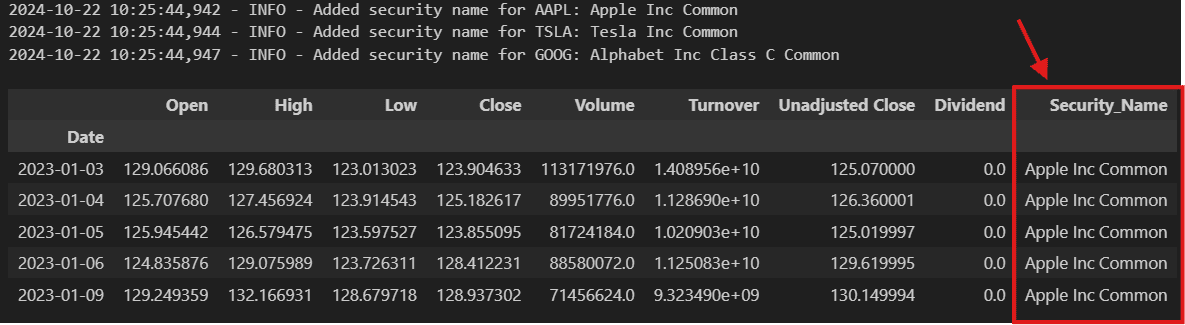

Explanation: We fetch the full company name for each ticker (AAPL, TSLA, GOOG) and add it as a new column (Security_Name) in the data.

Step 4: Add Sector Information

We can further enrich our data by adding the GICS sector classification for each stock.

def add_sector_info(symbol, data):
    sector = norgatedata.classification_at_level(symbol, 'GICS', 'Name', level=1)
    data['Sector'] = sector
    logging.info(f"Added sector information for {symbol}: {sector}")
    return data

aapl_data = add_sector_info('AAPL', aapl_data)
tsla_data = add_sector_info('TSLA', tsla_data)
goog_data = add_sector_info('GOOG', goog_data)

aapl_data.head()

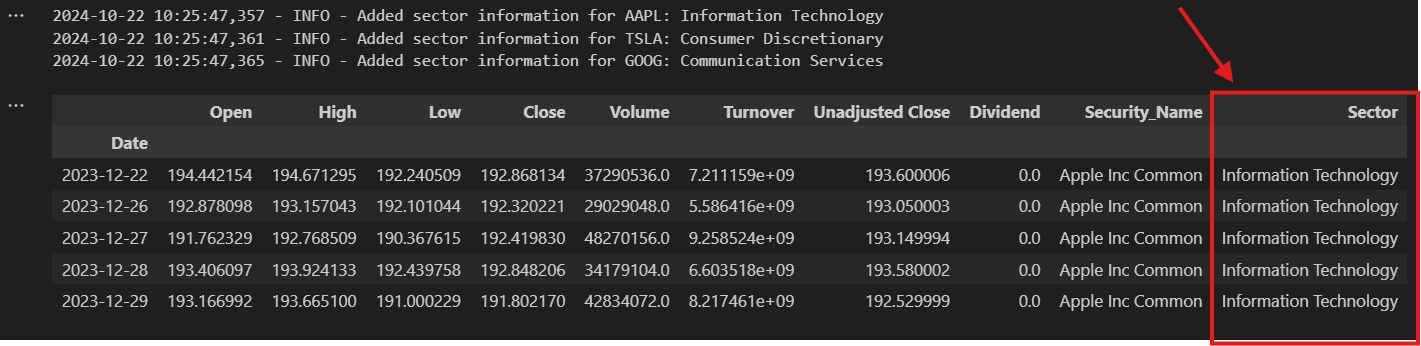

Explanation: This step adds each stock’s sector using the GICS (Global Industry Classification Standard), which categorizes stocks by industry.

Step 5: Check Index Constituency (S&P 500, Russell 3000)

In this step, we check whether a stock (e.g., AAPL, TSLA, GOOG) was part of major indices such as the S&P 500 or Russell 3000 at any point in time. We use Norgate Data’s index_constituent_timeseries function to fetch the relevant data and append it to our existing DataFrame with clearly named columns.

def check_index_constituency(symbol, data):
    indices_to_check = ['S&P 500', 'Russell 3000']

    for indexname in indices_to_check:
        logging.info(f"Checking if {symbol} was part of {indexname}...")

        # Fetch the index membership timeseries directly using the data DataFrame
        index_data = norgatedata.index_constituent_timeseries(
            symbol,
            indexname,
            padding_setting=norgatedata.PaddingType.NONE,
            pandas_dataframe=data.copy(),  # Pass in a copy of the existing DataFrame
            timeseriesformat='pandas-dataframe'
        )


        column_name = f'In_{indexname.replace(" ", "_")}'

        if column_name in data.columns:
            logging.info(f"Column {column_name} already exists. Skipping...")
            continue

        if 'Index Constituent' in index_data.columns:
            # Rename the 'Index Constituent' column to reflect index membership
            index_data.rename(columns={'Index Constituent': column_name}, inplace=True)

            # Assign the renamed column back to the original data DataFrame
            data[column_name] = index_data[column_name]
        else:
            logging.warning(f"'Index Constituent' column not found for {symbol} in {indexname}")

    return data

aapl_data = check_index_constituency('AAPL', aapl_data)
tsla_data = check_index_constituency('TSLA', tsla_data)
goog_data = check_index_constituency('GOOG', goog_data)

aapl_data.head(5)

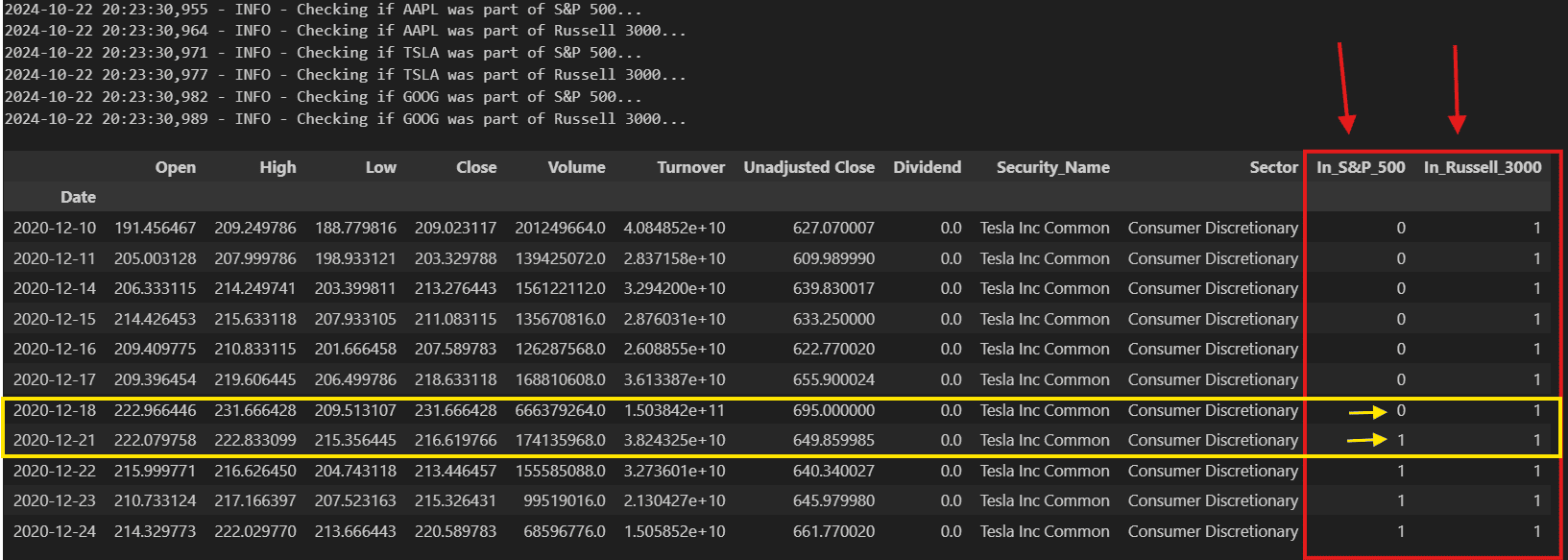

Explanation:

• Loop Over Indices: We check for S&P 500 and Russell 3000 membership in this example, but you can add or remove indices as needed.
• Fetch Data from Norgate: We use norgatedata.index_constituent_timeseries to get whether the stock was a constituent of the index.
• Column Renaming: The column Index Constituent is renamed based on the index being checked (e.g., In_S&P_500, In_Russell_3000).

Step 6: Download Active and Delisted Market Symbols

Once we understand how to retrieve stock data for a few specific tickers, we can scale up by downloading all active and delisted symbols from Norgate Data. This is crucial for retrieving comprehensive stock market data that includes not just the current active stocks, but also companies that have been delisted.

def get_all_market_symbols():
    logging.info("Retrieving all symbols from US Equities and US Equities Delisted...")

    us_equities = norgatedata.database_symbols('US Equities')
    us_delisted = norgatedata.database_symbols('US Equities Delisted')

    logging.info(f"Retrieved {len(us_equities)} active symbols and {len(us_delisted)} delisted symbols.")
    return us_equities, us_delisted

active_symbols, delisted_symbols = get_all_market_symbols()

print("Active symbols:", active_symbols[:5])
print("Delisted symbols:", delisted_symbols[:5])

Explanation:

• get_all_market_symbols: This function retrieves symbols from the US Equities (active) and US Equities Delisted databases provided by Norgate Data.

Step 7: Filter for Stocks Only

Now that we have a complete list of symbols, we want to filter out non-equity instruments (such as ETFs or REITs) so that we’re left with only stocks.

def filter_stocks(symbols):
    stock_symbols = [symbol for symbol in symbols if norgatedata.subtype1(symbol) == 'Equity']
    logging.info(f"Filtered {len(stock_symbols)} stocks from {len(symbols)} total symbols.")
    return stock_symbols

active_stocks = filter_stocks(active_symbols)
delisted_stocks = filter_stocks(delisted_symbols)

print(f"Active stocks: {len(active_stocks)}, Delisted stocks: {len(delisted_stocks)}")

Explanation:

We use norgatedata.subtype1(symbol) to filter out anything that is not classified as an equity (e.g., ETFs, REITs). This ensures we’re only dealing with stock data.

Step 8: Download Complete Stock Data (Listed and Delisted)

In this step, we move from working with individual tickers to downloading the complete U.S. stock market data, including both active and delisted stocks. This gives us a full dataset of the market, allowing for comprehensive analysis and backtesting across historical and current equities.

def download_all_stock_data(symbols, start_date, end_date):

    all_data = []

    for symbol in symbols:
        logging.info(f"Downloading data for {symbol}...")
        data = download_stock_data(symbol, start_date, end_date)

        if data is not None:
            data['Symbol'] = symbol  # Add the symbol as a column
            all_data.append(data)

    # Combine all data into a single DataFrame (keeping Date as index by default)
    return pd.concat(all_data, ignore_index=False) if all_data else pd.DataFrame()

# Download all active and delisted stock data
logging.info("Downloading active stock data...")
all_active_data = download_all_stock_data(active_stocks, start_date, end_date)

logging.info("Downloading delisted stock data...")
all_delisted_data = download_all_stock_data(delisted_stocks, start_date, end_date)

# Display the number of active and delisted stocks
if not all_active_data.empty:
    print(f"Downloaded data for {len(all_active_data['Symbol'].unique())} active stocks.")
else:
    print("No active stock data downloaded.")

if not all_delisted_data.empty:
    print(f"Downloaded data for {len(all_delisted_data['Symbol'].unique())} delisted stocks.")
else:
    print("No delisted stock data downloaded.")

Explanation:

• Function Overview:
  • download_all_stock_data(symbols, start_date, end_date) loops over the provided symbols (both active and delisted), downloading historical data for each one over the specified date range.
  • The data for each stock is appended to a list, all_data, and then combined into a single DataFrame with Date as the index (Norgate’s default behavior).
• For Each Symbol:
  • The function iterates through the symbols list (this could be either active or delisted stocks).
  • For each stock symbol, it calls download_stock_data to fetch the historical price data.
  • After fetching the data for each stock, it adds a new column called Symbol so that when all the data is combined, each row is labeled with the corresponding stock symbol.
• Combining the Data:
  • The data for all stocks is combined into a single DataFrame using pd.concat. Since the default behavior from Norgate is to return the Date as the index, we maintain that structure by not resetting the index.
• Downloading Active and Delisted Data:
  • First, we download the data for active stocks (all_active_data), then for delisted stocks (all_delisted_data).
  • After downloading, the code prints how many unique stocks were downloaded in each category (based on the specified dates). If no data was downloaded, it prints a message indicating that.

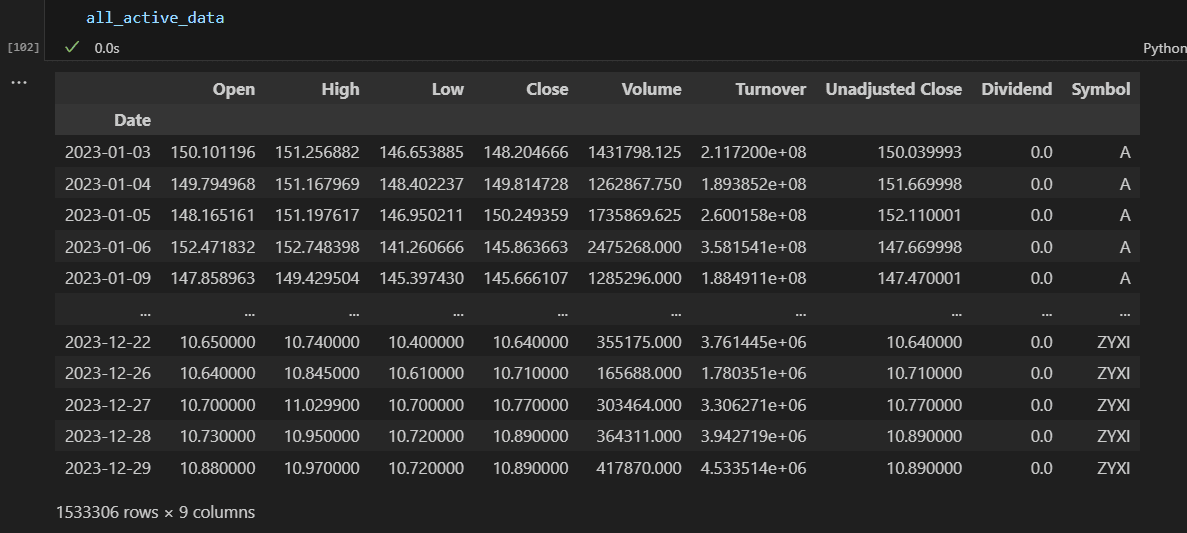

In case you print out all_active_data, you will see the following:

Step 9: Adding Security Names to the Data

In this step, we will add the security names for each stock in the dataset

def add_security_name(data):
    unique_symbols = data['Symbol'].unique()

    security_names = {}

    for symbol in unique_symbols:
        logging.info(f"Fetching security name for {symbol}...")

        security_name = norgatedata.security_name(symbol)

        security_names[symbol] = security_name

    data['Security_Name'] = data['Symbol'].map(security_names)

    return data

all_active_data = add_security_name(all_active_data)
all_delisted_data = add_security_name(all_delisted_data)

all_active_data.head()

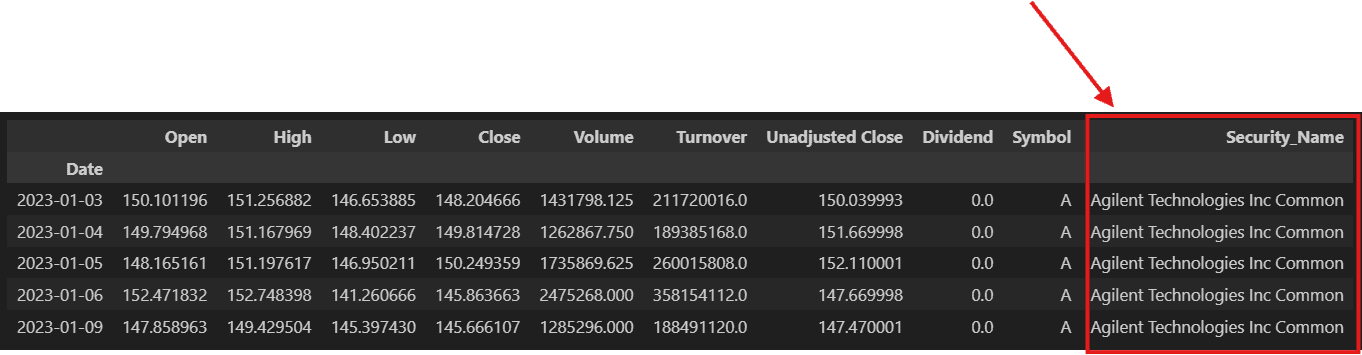

Explanation:

• Unique Symbols: We extract the unique symbols from the Symbol column using data['Symbol'].unique(). This ensures that we only need to fetch the security name for each stock once.
• Fetching Security Name: For each symbol, we fetch the security name from Norgate using the norgatedata.security_name(symbol) function. This is stored in a dictionary (security_names) for faster lookup.
• Mapping the Names: We map the security names back to the DataFrame using the map() function. This operation ensures that the Date index remains unchanged.

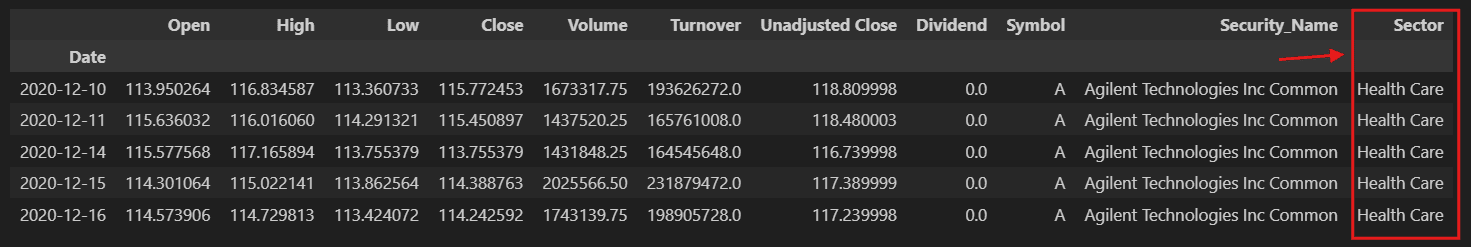

Step 10: Adding Sector Information to the Data

In this step, we will add the sector classification for each stock.

def add_sector_info(data):
    unique_symbols = data['Symbol'].unique()

    sectors = {}

    for symbol in unique_symbols:
        logging.info(f"Fetching sector information for {symbol}...")

        sector = norgatedata.classification_at_level(symbol, 'GICS', 'Name', level=1)

        sectors[symbol] = sector

    data['Sector'] = data['Symbol'].map(sectors)

    return data

all_active_data = add_sector_info(all_active_data)
all_delisted_data = add_sector_info(all_delisted_data)

all_active_data.head()

Explanation:

• Unique Symbols: Similar to the security names step, we extract the unique symbols and iterate over them to fetch the sector classification for each stock.
• Fetching Sector Information: For each symbol, we fetch the sector classification using the norgatedata.classification_at_level(symbol, 'GICS', 'Name', level=1) function. The fetched sectors are stored in a dictionary for faster mapping.
• Mapping the Sectors: The sectors are mapped back to the DataFrame using the map() function, ensuring that the Date index remains unchanged.

Step 11: Checking Index Constituency for Active and Delisted Stocks

In this step, we will check whether each stock was part of major indices like the S&P 500 or the Russell 3000.

def check_index_constituency(symbol, data):
    indices_to_check = ['S&P 500', 'Russell 3000']

    for indexname in indices_to_check:
        logging.info(f"Checking if {symbol} was part of {indexname}...")

        try:
            index_data = norgatedata.index_constituent_timeseries(
                symbol,
                indexname,
                pandas_dataframe=data.copy(),  # Pass in a copy of the existing DataFrame
                padding_setting=norgatedata.PaddingType.NONE,
                timeseriesformat='pandas-dataframe'
            )
        except Exception as e:
            logging.error(f"Error fetching index data for {symbol} in {indexname}: {e}")
            index_data = data.copy()
            index_data['Index Constituent'] = 0

        column_name = f"In_{indexname.replace(' ', '_')}"

        if column_name in data.columns:
            logging.info(f"Column {column_name} already exists for {symbol}. Skipping...")
            continue

        if 'Index Constituent' in index_data.columns:
            index_data.rename(columns={'Index Constituent': column_name}, inplace=True)

            data[column_name] = index_data[column_name]
        else:
            logging.warning(f"'Index Constituent' column not found for {symbol} in {indexname}")
            data[column_name] = 0

    return data

active_symbols = all_active_data['Symbol'].unique()
delisted_symbols = all_delisted_data['Symbol'].unique()

logging.info("Checking index constituency for active stocks...")
processed_active_data = []

for symbol in active_symbols:
    symbol_data = all_active_data[all_active_data['Symbol'] == symbol].copy()
    symbol_data = check_index_constituency(symbol, symbol_data)
    processed_active_data.append(symbol_data)

all_active_data = pd.concat(processed_active_data)

logging.info("Checking index constituency for delisted stocks...")
processed_delisted_data = []

for symbol in delisted_symbols:
    symbol_data = all_delisted_data[all_delisted_data['Symbol'] == symbol].copy()
    symbol_data = check_index_constituency(symbol, symbol_data)
    processed_delisted_data.append(symbol_data)

all_delisted_data = pd.concat(processed_delisted_data)

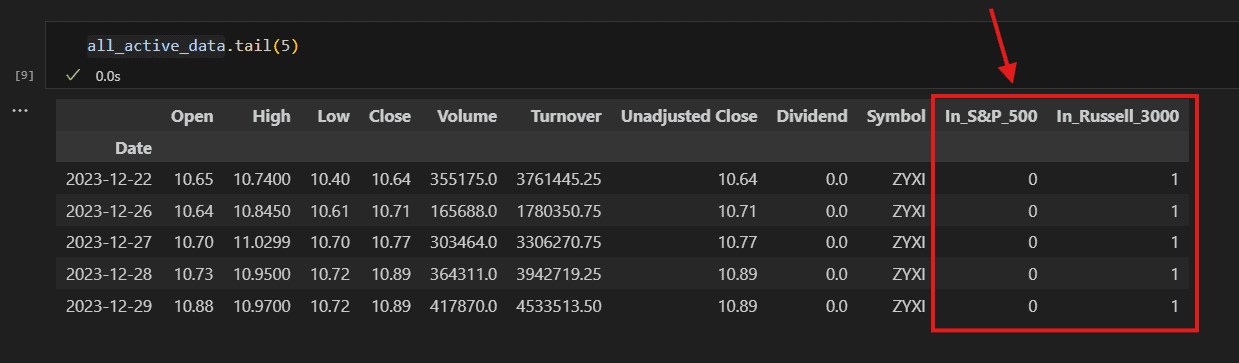

all_active_data.tail(5)

Explanation:

• Check Index Membership: We loop through each stock symbol in the active and delisted datasets and check if they were part of the S&P 500 or Russell 3000 indices. For each symbol, we add a corresponding column (e.g., In_S&P_500, In_Russell_3000) indicating index membership.
• Combining Data: After processing all active and delisted symbols separately, we concatenate the results back into all_active_data and all_delisted_data.

Step 12: Merge Active and Delisted Stocks into One Dataset

In this step, we combine active and delisted stock data into one dataset and export it as a .parquet file.

merged_data = pd.concat([all_active_data, all_delisted_data])
merged_data.sort_index(inplace=True)

output_path = './Survivorship_bias_free_Database.parquet'
merged_data.to_parquet(output_path, engine='pyarrow')


logging.info(f"Merged data has been saved as {output_path}")

Explanation:

• Merge datasets: We concatenate active and delisted stock data to create a comprehensive dataset.
• Sort by date: The merged data is sorted by the ‘Date’ index to ensure proper chronological order.
• Export to .parquet: The final dataset is saved in .parquet format for efficient storage and retrieval.

Conclusion

Now we have successfully constructed a comprehensive, survivorship bias-free database of both listed and delisted stocks for the specified period, from start_date to end_date. This database can be used for various types of financial analysis, backtesting trading strategies, and academic research while ensuring that delisted stocks are not excluded, providing a more accurate reflection of historical market performance.

With this database, you can avoid the common pitfall of survivorship bias, which often leads to overly optimistic results in research that focuses only on active companies. Including both listed and delisted stocks allows for a more balanced, real-world view of the stock market, making your analysis much more robust.

You can download the full Jupyter Notebook for this process by clicking here and easily adapt it for your own research or projects

For further assistance, feel free to contact us.

Author

Mohamed Gabriel

Software Engineer @ Concretum Group
